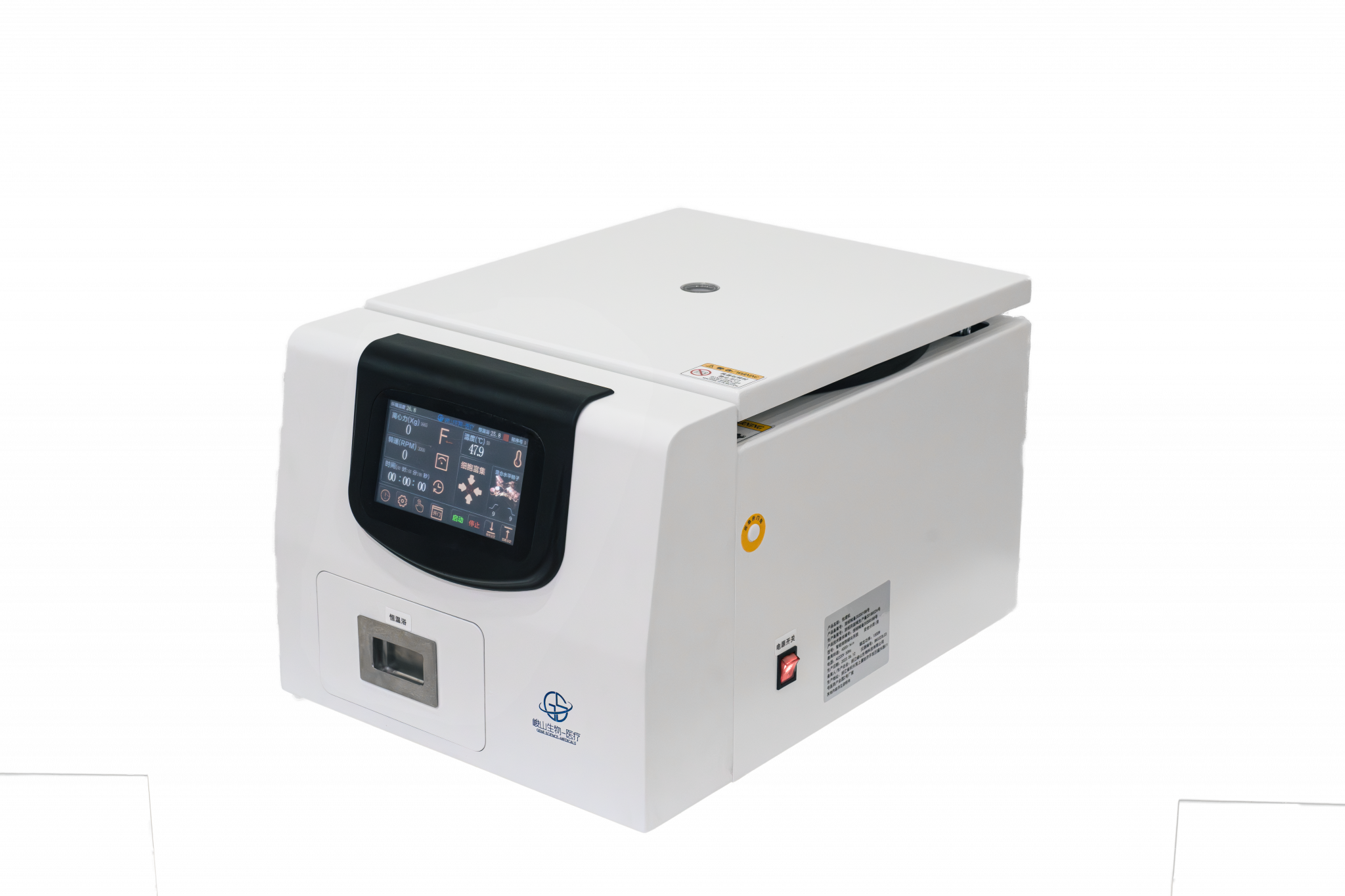

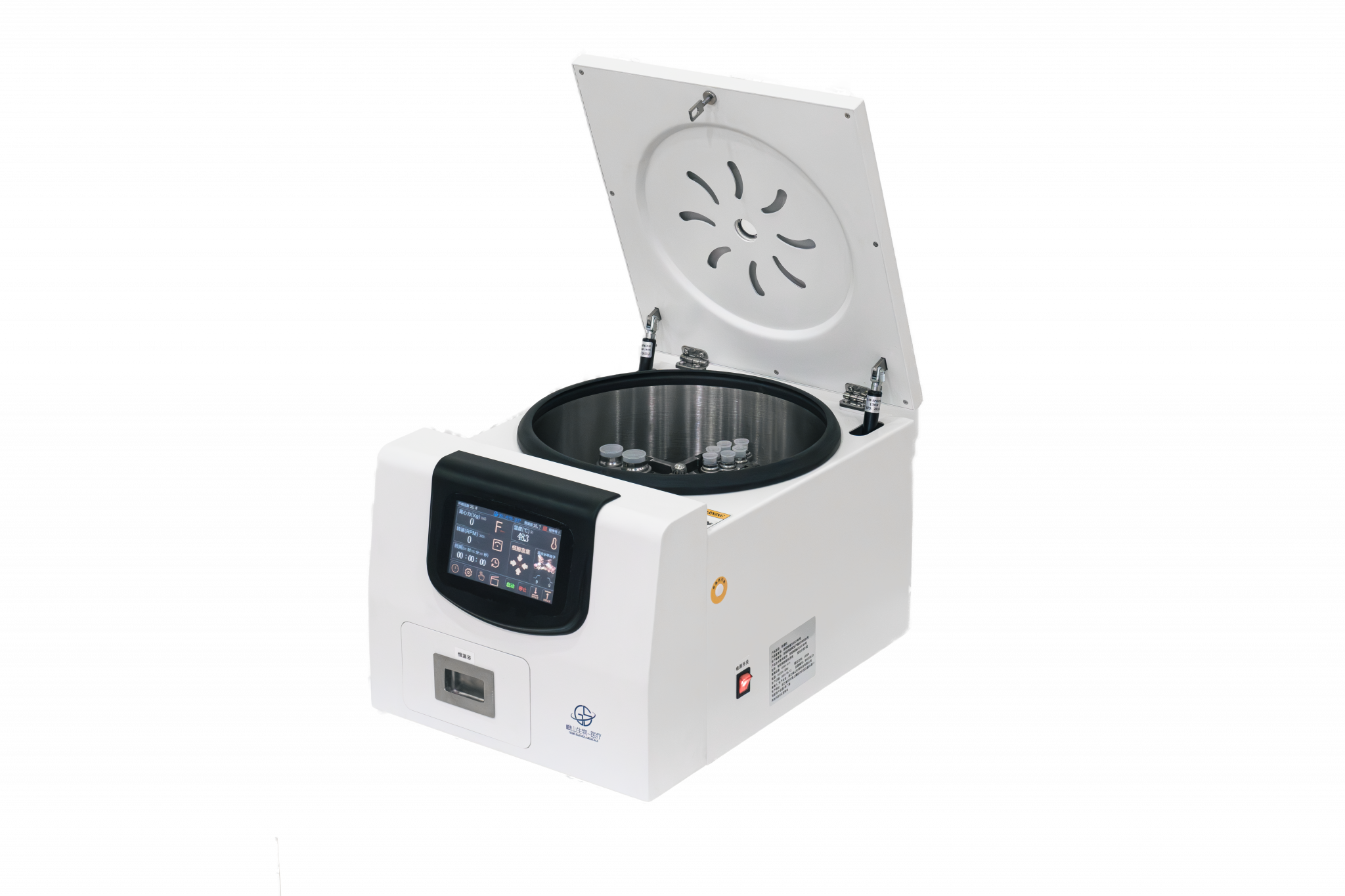

Smart Cell Block System (BK-TYPE01)
 | Advanced micro cell enrichment technology It only takes 10-15 minutes to enrich the cells into a cell mass, which is tightly aggregated and does not spread out. |
 | Improve efficiency Easy to operate, 12 servings can be completed in half an hour, which can replace manual work and improve experimental efficiency. |
 | Good compatibility Can use various specifications of centrifuge tubes (1.5ml-50ml); can handle most types of cytology samples. |
 | Integration The same instrument completes sample pretreatment, cell enrichment, and reagent thawing. |
 | Safety and environmental protection: Care for the health of operators, the reagents used do not contain irritating ingredients; The equipment has the function of misoperation protection, and can display equipment failure information, which is convenient for judgment and maintenance. |
Technical Specification
Device can be used for Cell blocks preparation (≧12servings /time）
| Volume： | 573*415*347mm
| Working Status： | Can heat up to over 40 ℃ |
| Weight： | 46.5kg | Temperature control accuracy： | ±5℃ |
| Operating Voltage： | AC220V AC Frequency：50Hz；16A | Rotational speed control accuracy： | ±50rpm |
| Maximum Rotational Speed： | 4000rpm | Noise level： | <65dB(A) |
| Maximum Centrifugal Force：
| 2800×g | Operating temperature： | 5°C~40°C indoor relative humidity：≤80% |
| Throughput：
| 12 servings/time，Fits centrifuge tubes with following size 1.5mL、2mL、5mL、10mL、15mL、50mL | Atmospheric pressure： | 860hPa~1060hPa |
